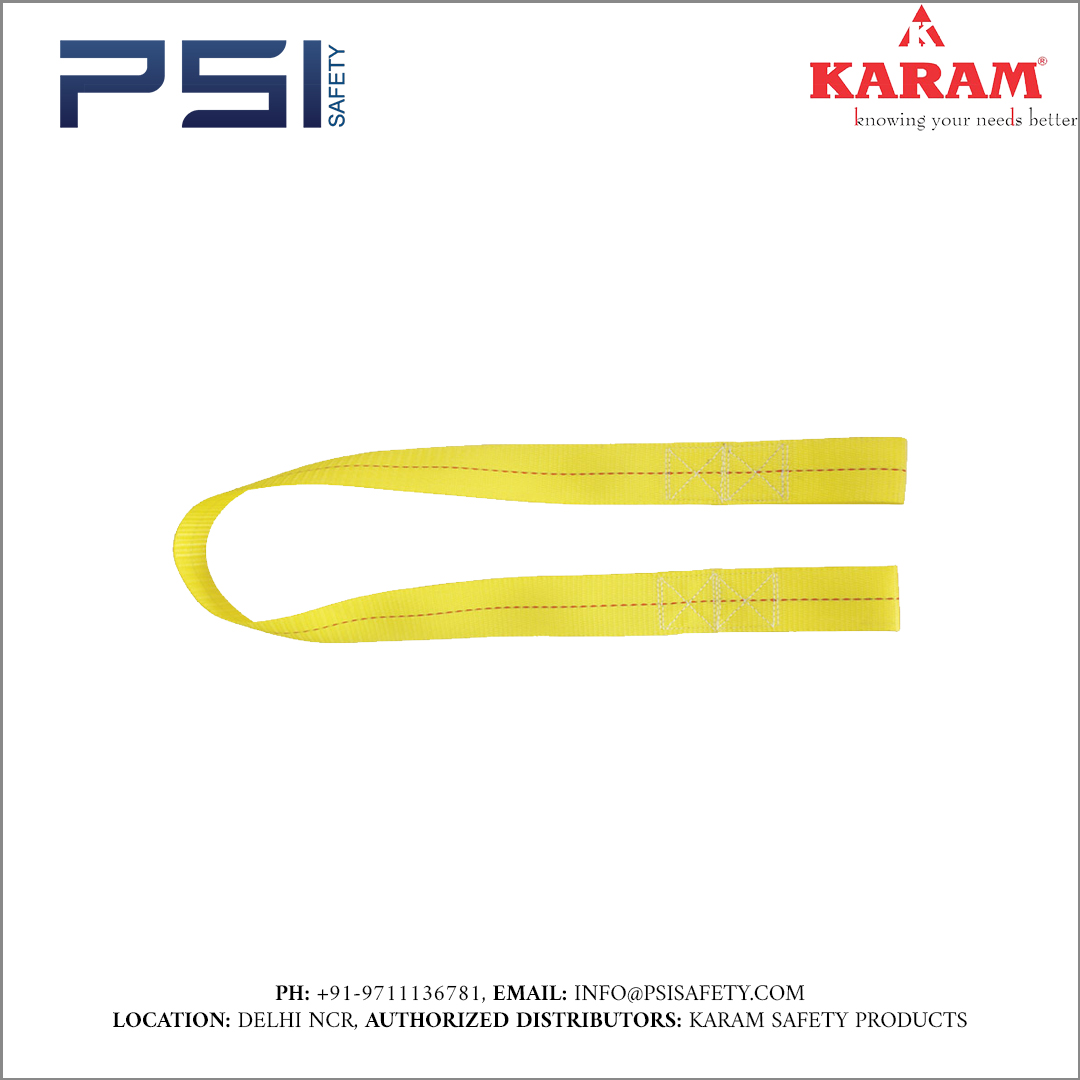

Karam Concrete Anchor Strap Model – PN809 Type B Anchor

Product Specifications

Material	50mm wide Polyester webbing
Length	1.0m, 1.5m and 2.0m or as requested
Minimum Breaking Strength	18kN for 3 minutes
Attachments	Loops at both the ends

Certification

Certified to EN 795:2012 Type B, IS 3521(Part 7):2021, TS 16415:2013 Type B (for upto 2 users)

Description

B-type anchor devices have one or more stationary anchor points and don’t need a fixing element to attach to the structure. They’re designed for easy transport, minimal installation, or quick dismantling.

KARAM offers cross arm straps in various configurations and lengths that can be adjusted as needed. A 1-year warranty from the invoice date covers any manufacturing defects.

Benefits

The sling is structured to encircle an anchorage structure that possesses the appropriate size, shape, and strength necessary to support the intended load.
