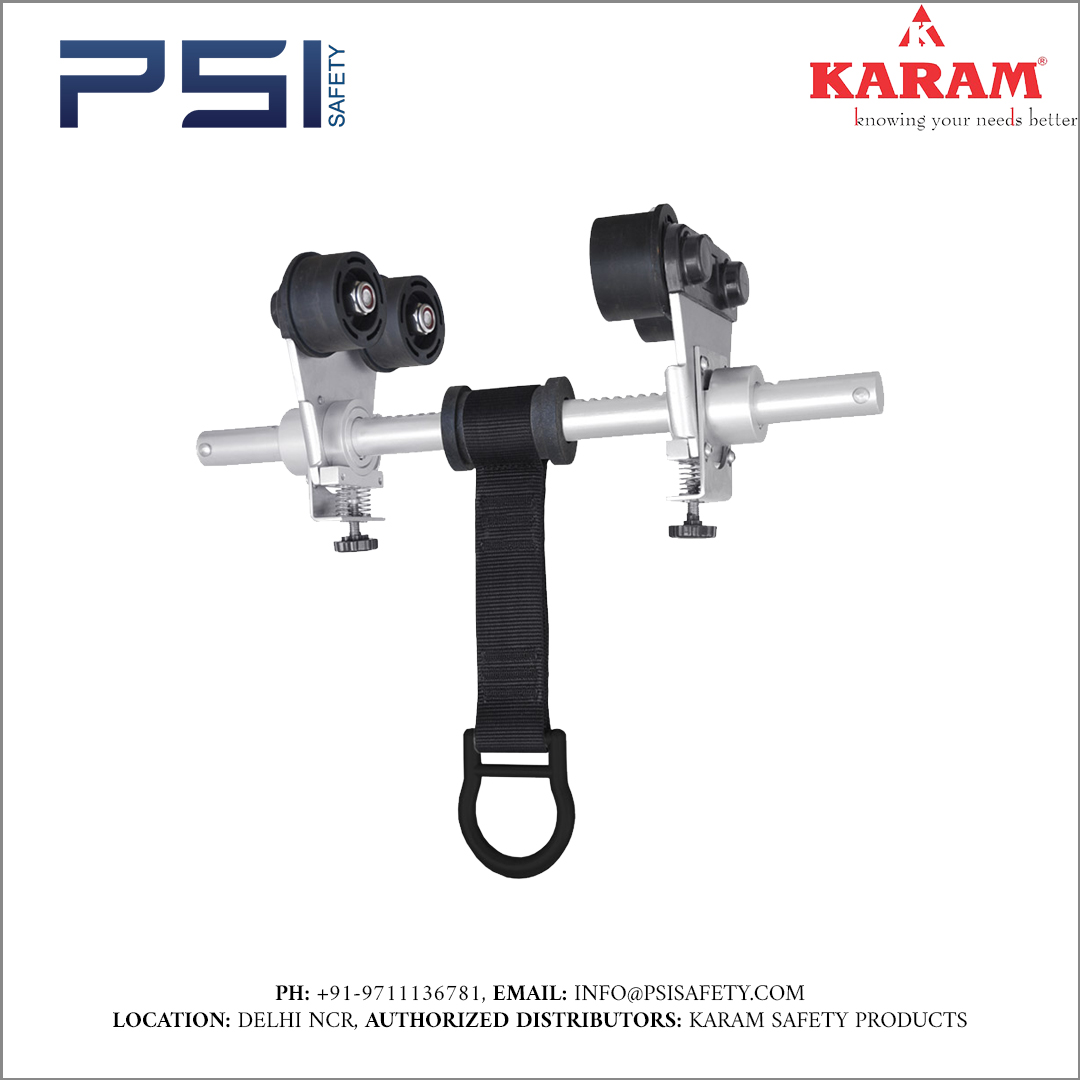

Karam Di-Electric Beam Anchor Trolley Model – SA15B

Karam Di-Electric Beam Anchor Trolley Model – SA15B – Type B Anchor

Product Specifications

Material	Aluminium and stainless steel
Minimum Breaking Strength	23kN
Flange Width	80mm to 250mm
Net Weight	3.70kg ± 0.01kg

Certification

Certified to EN 795:2012 Type B, IS 3521(Part 7):2021 Conforms to ANSI Z 359.1:2007

Description

B-type anchor devices feature one or more fixed anchor points and do not require a fixing element for attachment to the structure. They are designed for easy transportation, often needing minimal installation effort or being swiftly dismantled and moved. The beam anchor is specifically crafted for easy transport and quick assembly or disassembly. It includes electrically insulated rollers, ensuring safety in environments with potential electrical hazards. The minimum dielectric resistance of these rollers is 30kV.

Warranty: Covers manufacturing defects for one year from the invoice date.

Benefits

Offers a mobile anchorage point that moves along with the user, utilizing the length of the mounted beam.
Highly resistant to corrosion and simple to install.
Equipped with adjustable flanges to accommodate various beam sizes.
Provides continuous safe anchorage by enabling the anchor point to travel along the beam with the user.
Features wheels that ensure exceptionally smooth movement along the mounted beam.
