Karam Extremity Anchor Post Model

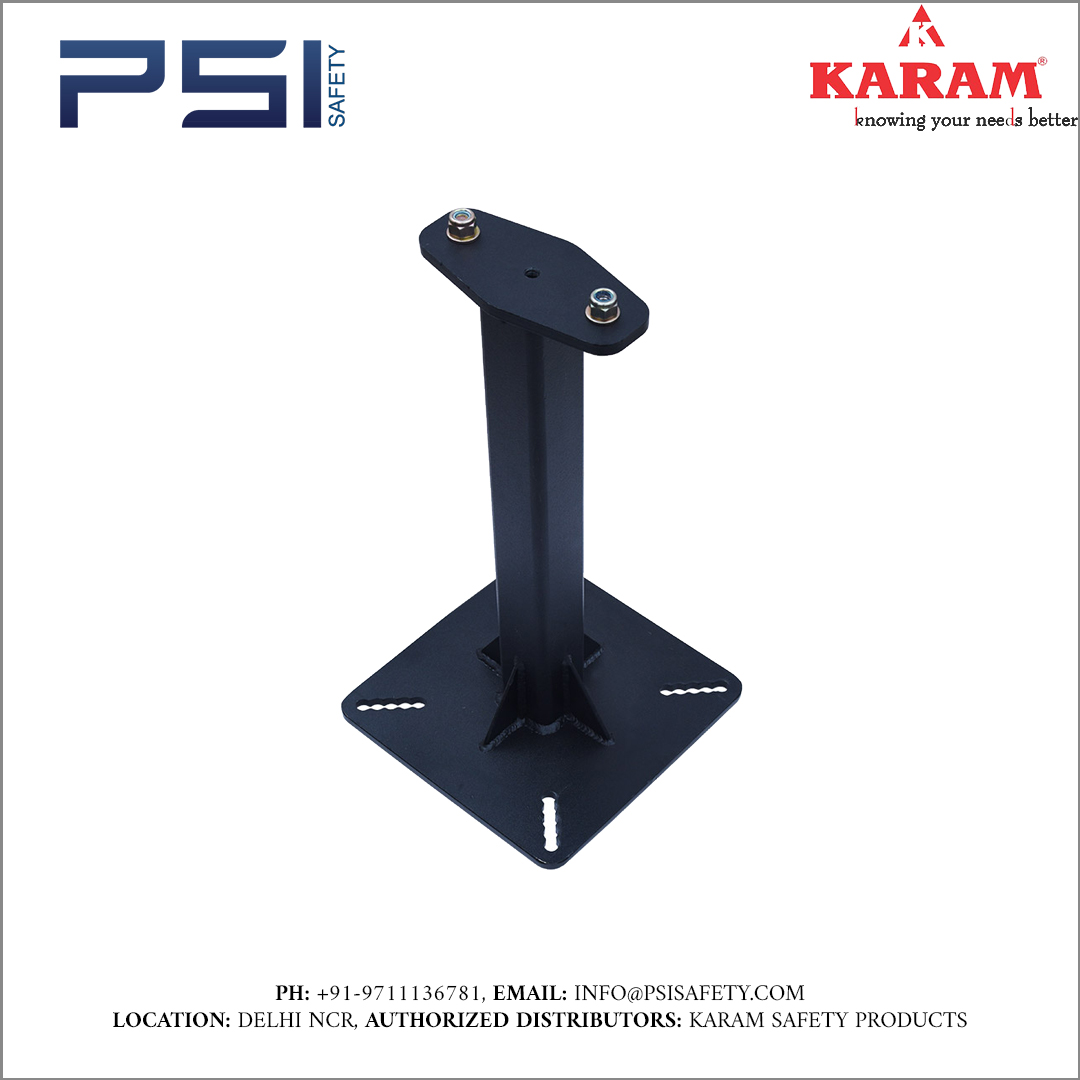

Karam Extremity Anchor Post Model – SA25

Product Specifications

Material	Alloy steel
Finish	ED coated
Breaking Strength	15kN
Min Flange Width	150mm
Max Flange Width	220mm
Available Length and Weight	300.00mm: 18.30kg; 500.00mm: 20.07kg; 750.00mm: 22.15kg

Certification

Conforms to EN 795:2012 Type A TS 16415:2013 (for upto 4 users), Certified to AS/NZS 5532:2013

Description

Anchor posts are durable, typically semi-permanent or permanent installations on rooftops or elevated areas. They function as secure attachment points for horizontal lifelines and other components of fall protection systems. These posts are engineered to endure the forces of a fall, ensuring a reliable connection for workers’ Personal Fall Arrest Systems (PFAS).

Warranty: Valid for one year from the invoice date, covering manufacturing defects.

Benefits

Made of ED coated black alloy steel or stainless steel 316.
Designed to be fixed for installing a horizontal lifeline.
Available in lengths of 300.0mm, 500.0mm, and 750.0mm.
Compatible with universal extremity plates: Ref. PN4000(09), PN4000(38), and intermediate Ref. PN4000(10), PN4000(10)N.
