Description
Benefits
Ideal for use

Steel-Structures

Wall

Ceiling

Rooftops
Material | Stainless steel |
Minimum Breaking Strength | 23kN |
Finish | Polished |
Process | Stamped |
Net Weight | 311.0gm ± 10.0gm |
Conforms to EN 795:2012 Type A Certified to AS/NZS 5532:2013, IS 3521(Part 7):2021

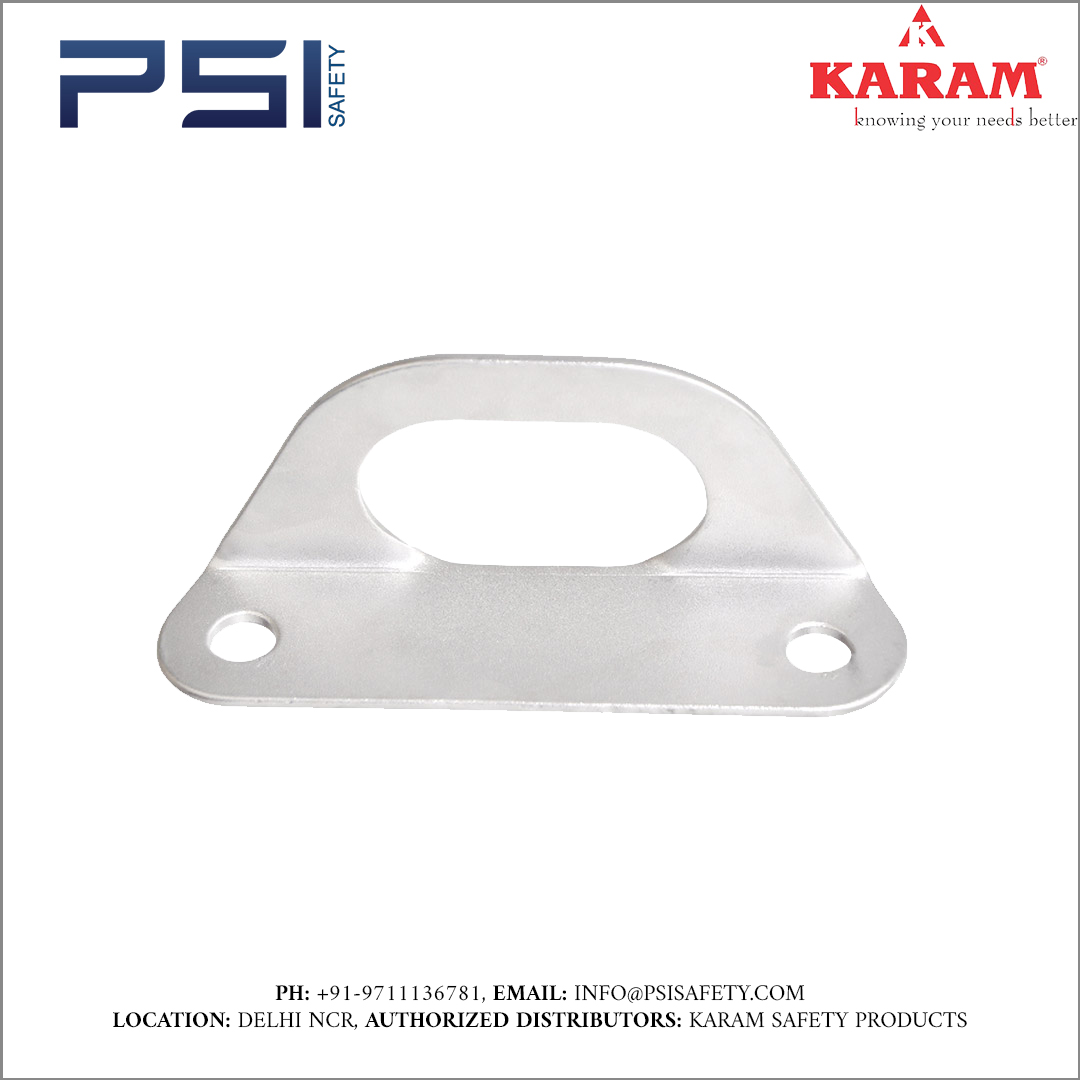

This anchor device features one or more stationary anchor points that necessitate a structural anchor or fixing element for attachment to the structure. Typically compact, this type of anchor may or may not be removable from the supporting structure, as it is secured using methods like rivets, studs, screws, welds, or resin bonding. Flange anchors are specially crafted for installation on walls, ceilings, rooftops, or steel structures.
Warranty: Covers manufacturing defects for one year from the invoice date.
The eye-bolt anchorage has undergone testing to confirm its capability to withstand a load of 23kN from all three axes, ensuring the utmost level of safety.
X-axis
Y-axis
Z-axis
Steel-Structures
Wall
Ceiling
Rooftops
