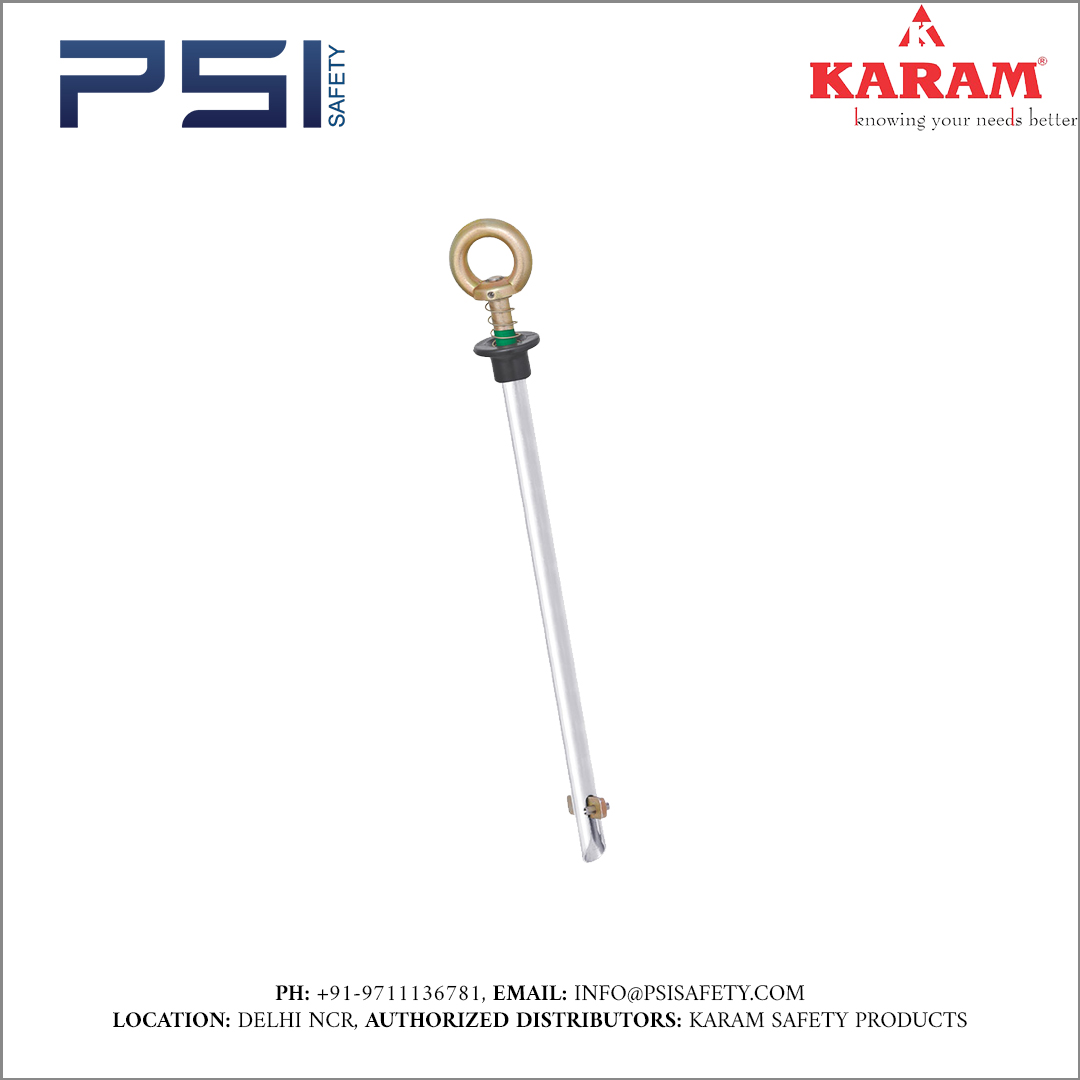

Karam Girder and Concrete Steel Anchor Model – SA13A Type B Anchor

Product Specifications

Material	Stainless steel and alloy steel
Minimum Breaking Strength	23kN
Preformed Hole of Dia	21mm to 30mm
Thickness of Structure	Upto 340mm
Net Weight	1.25kg ± 0.01kg

Certification

Certified to EN 795:2012 Type B, IS 3521(Part 7):2021 SA13 also Certified to AS/NZS 5532:2013 and ATEX 2014/34/EU Conforms to ANSI Z359.18-2017 Type A

Description

B-type anchor devices are equipped with one or more stationary anchor points and do not necessitate a fastening element to attach to a structure. They are specifically engineered for convenient transport, requiring minimal installation effort or offering swift dismantling and relocation capabilities. These devices are suitable for application on parapets, facades, and diverse structures. A 1-year warranty from the invoice date covers any manufacturing defects.

Benefits

B-type anchor devices feature one or more stationary anchor points and do not need a fixing element for attachment to a structure. They are designed for effortless transport and typically require minimal installation effort or can be quickly dismantled and relocated. These anchors are suitable for application on parapets, facades, and various structures. A 1-year warranty from the invoice date covers any manufacturing defects.
