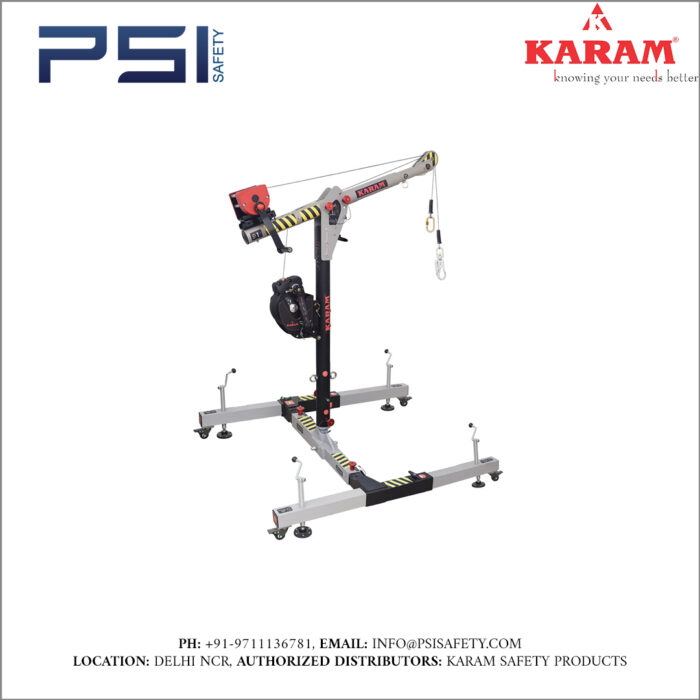

Karam H-Base Davit Model – DA01

Product Specifications

Material	High strength and durable aluminium alloy
Min-Max. Opening of H-Base	Ø1100mm – Ø1510mm
Maximum Load Capacity	500kg
Finish	Powder coated
System Strength	21kN
Weight	62.56kg ± 0.10kg

Certification

EN 795:2012 Type B, Atex 2014/34/EU and AS/NZS 5532:2013

Description

KARAM offers the Hexapod for accessing confined spaces below ground level with larger hole sizes. This equipment is particularly useful for challenging scenarios where workers need to enter such spaces. KARAM’s equipment allows for easy overhead access and retrieval of personnel and materials from these confined space areas.

The Hexapod can be used with three aluminum anchorage pulleys (AP012SS) mounted at the head of both tripods, along with the anchorage pulley AP017SS(BB) at the center for guiding the cable of the rescue winch. It also includes an inbuilt fixture for attaching our winch PN801A and retrieval blocks PCGS20R(N), PCGS25R, and PCGS30R using the mounting bracket PN800(45).

A 1-year warranty from the invoice date covers any manufacturing defects.

Benefits

The DA01 system breaks down into five components for easy storage, transport, and setup, with no tools required for assembly.
Its modular design accommodates various fixed and portable bases, along with an optional mast and extensions.
The cantilever arm features three adjustment positions for height customization as needed.
Foldable legs facilitate convenient transportation and installation.
Offers multiple anchorage points for rescue operations.
Includes an inbuilt swivel feature, allowing the davit column assembly to rotate up to 360° even under load by removing the locking pins.
A spirit leveler in the base assembly ensures surface level accuracy and balanced installation of the davit.
Equipped with two pre-installed lower mounting bracket assemblies [DA01(19)] for easy winch and retrieval installation.
The retrieval block can be mounted on the column with the bracket lower assembly using the universal mounting bracket SA17(26).
