Home Karam Safety Products Fall Protection Equipment Karam Horizon 2 Man Temporary Horizontal Rope Anchorage Line Model – Horizon PN3002
Karam Horizon 4 Man Temporary Horizontal Rope Anchorage Line Model - Horizon PN3001(C)
Karam Horizon 4 Man Temporary Horizontal Rope Anchorage Line Model - Horizon PN3001(C)
Back to products
Karam Horizon 2 Man Temporary Horizontal Rope Anchorage Line Model - Horizon PN3002(C)
Karam Horizon 2 Man Temporary Horizontal Rope Anchorage Line Model - Horizon PN3002(C)

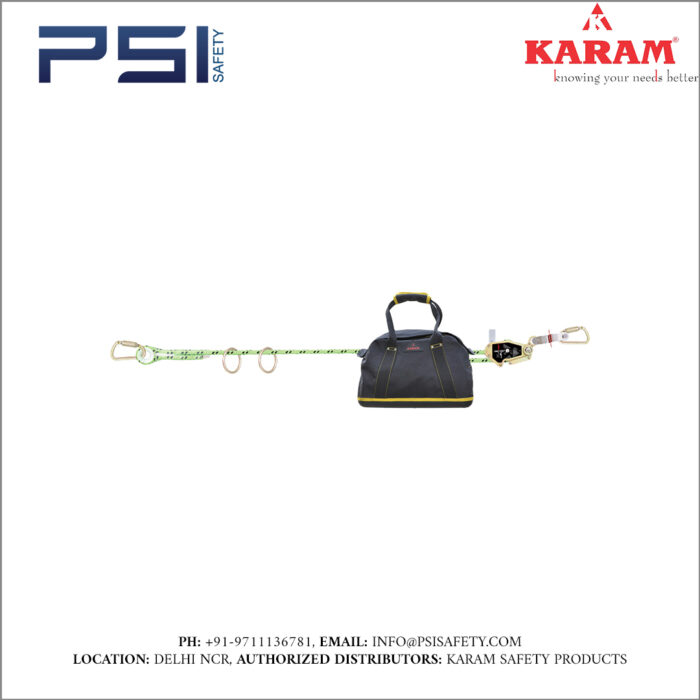

Karam Horizon 2 Man Temporary Horizontal Rope Anchorage Line Model – Horizon PN3002

Product Specifications

Rope Type Kernmantle rope of dia 16mm
Material of Tensioner Galvanized steel
Attachment Ends One end-stitched loop with PN113 other end-tension indicator with PN 113
Anchorage Type Forged galvanized steel O-rings Qty- 2 nos
Max. No. of Users 2 Users
Max Span Length 5m to 25m
Weight 8.26kg ± 0.10kg

Certification

EN 795:2012 Type C TS 16415:2013 Type C

Categories: Fall Protection Equipment, Karam Safety Products, Temporary Anchorage Line Systems Tags: Fall Protection Equipment, Karam Horizon 2 Man Temporary Horizontal Rope Anchorage Line Model - Horizon PN3002, Temporary Anchorage Line Systems
  • Description
Description

Description

The new 2-man temporary horizontal lifeline from KARAM is designed for quick and easy installation, accommodating up to 2 personnel. KARAM offers a wide range of temporary horizontal and vertical anchorage line systems that are incredibly easy to carry and install, providing safe and suitable anchorage whenever needed.

The entire system is supplied in a bag that is permanently attached to the assembly, allowing users to conveniently carry the system using the comfortable handles provided. The bag is designed to keep the unused rope safe, protecting it from abrasion, dust, dirt, oil, etc.

Warranty: 1 year from the invoice date, covering any manufacturing defects.

Benefits

  • PN3002 features 2 steel O-rings for easy attachment of the harness lanyard using a karabiner
  • PN3002(C) comes with 2 stainless steel cross-over anchors (SA29) for smooth crossing between users, ensuring 100% tie-off and preventing disengagement from the lifeline
  • Includes a unique tension indicator; the indicator disc releases when the required tension is achieved, signaling readiness for use
  • Minimum breaking strength of 25kN
  • Provides convenient storage for excess rope by putting it back into the bag after deployment

2 User

Easy to install









Ideal for use

Anchorage
