Karam Horizon Temporary Horizontal Webbing Anchorage Line Model

Karam Horizon Temporary Horizontal Webbing Anchorage Line Model – Horizon PN3000(BC)

Product Specifications

Webbing Material	Polyester webbing of 30mm
Attachment Ends	Both ends-Stitched loops with PN113
Max. No. of Users	Upto 2 users
Max. Span Length	Upto 20m
Weight	4.25kgs ± 0.10kgs

Certification

EN 795:2012 TS 16415:2013 Type B&C, IS 3521(Part 8):2021

Description

KARAM offers the Horizon range of temporary horizontal lifelines, comprising textile webbing and rope, designed for effortless transportation and installation as needed. These lifeline systems provide safe and suitable horizontal anchorage along their entire length.

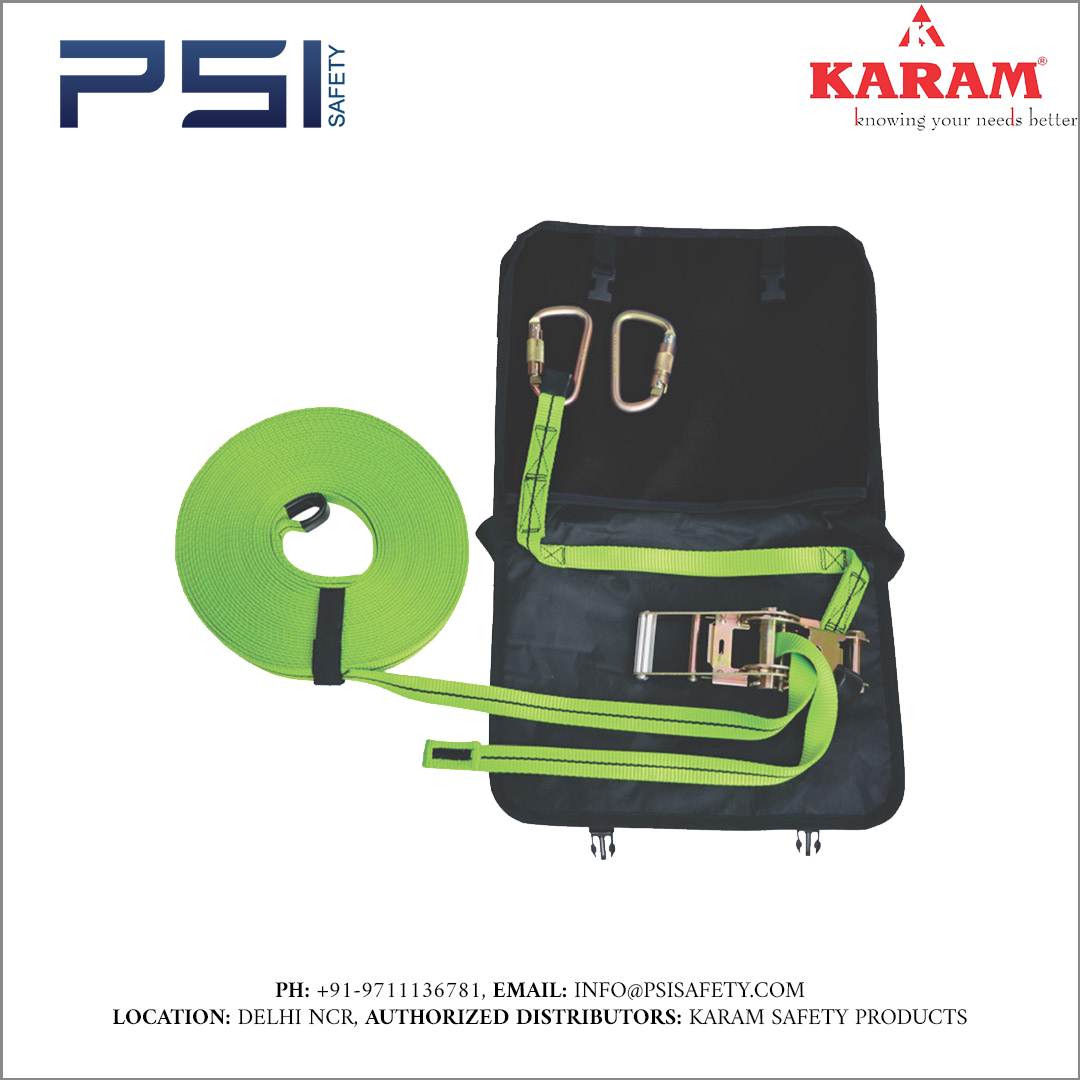

Additionally, KARAM provides a wide array of temporary horizontal and vertical anchorage line systems known for their ease of carrying and installation. These lifelines ensure secure and safe anchorage for users whenever required. The entire system is supplied in a bag that is permanently attached to the assembly. The bag features comfortable shoulder hanging straps, allowing users to easily carry the system. Warranty covers any manufacturing defects for one year from the date of invoice.

Benefits

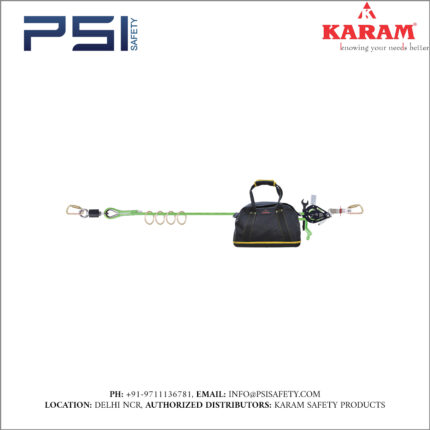

The Horizon PN3000(BC) is a horizontal anchorage lifeline comprising 30mm Polyester webbing.
Equipped with a KARAM ratchet tensioner for easy tensioning between two structures.
Both ends feature auto-locking steel karabiners PN113.
Includes 2 cross arm straps PN804 for tying off to the required structure.
Available in a total length of 20m, allowing for use between 5m to 20m.
Tested and certified for use by two users simultaneously.
Users can attach their harness lanyard to the lifeline using a karabiner, enabling movement while ensuring safety and security throughout.
