Karam Horizontal Anchorage Lifeline System on Cable Line Model – Horizon PN4000 (Roof Mounted)

Benefits

  • Material: Stainless steel construction.
  • Shock absorber installed at one end reduces fall impact on user and extremities.
  • Shock absorber includes tension and fall indicators.
  • Intermediates needed every 5.0m to 15.0m for longer lines.
  • Carriage body passes through intermediates seamlessly.
  • Range of roof posts accommodates various roof sheet profiles.

Certification

EN 795:2012 Type C and TS 16415:2013 (for upto 4 users), IS 3521(Part 8):2021 and ATEX 2014/34/EU



Category: Tags: ,
safety equipment
Description

Description

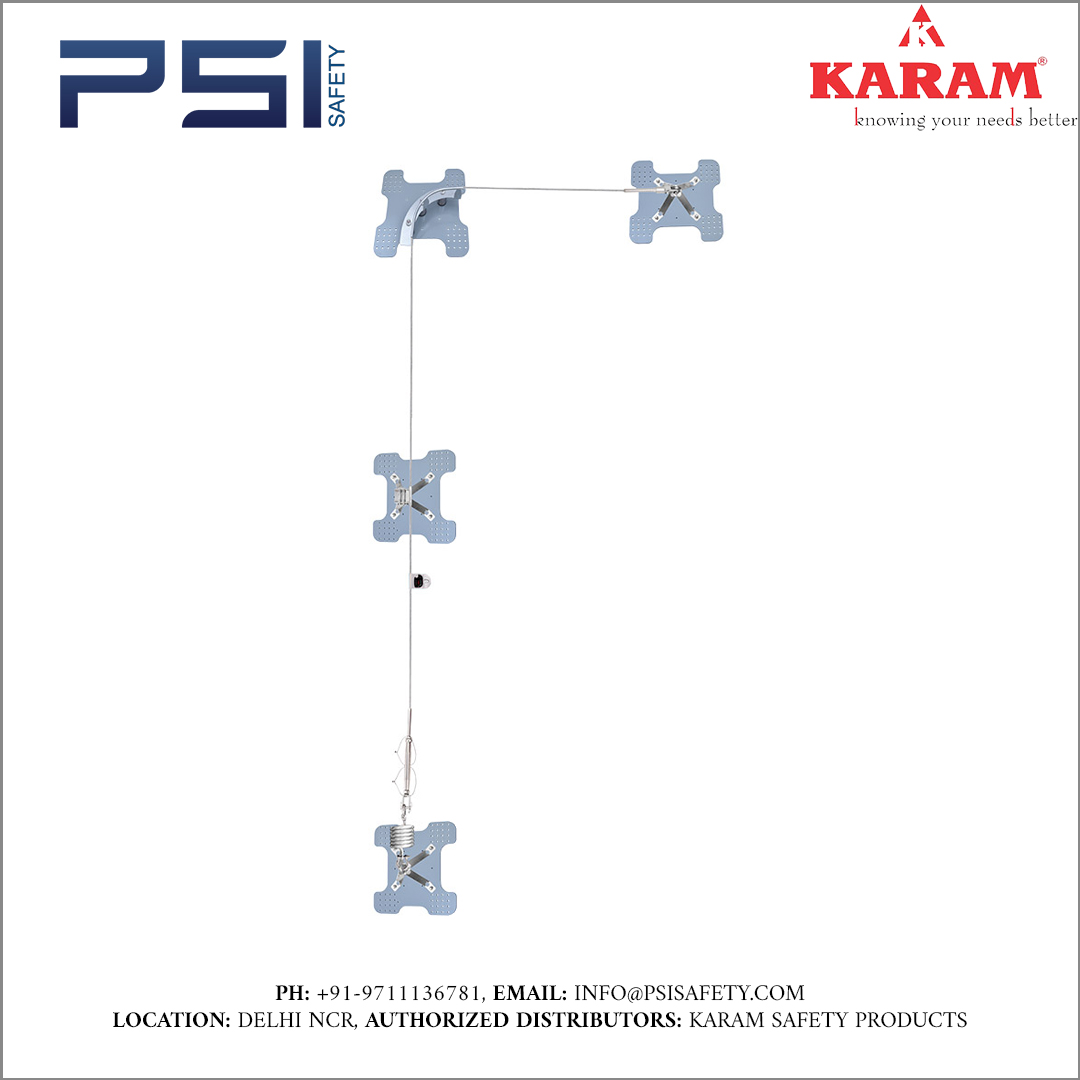

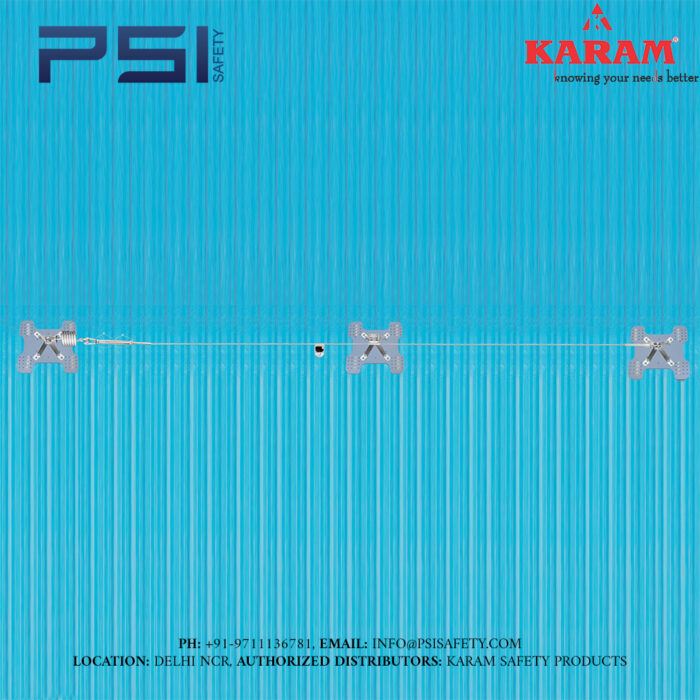

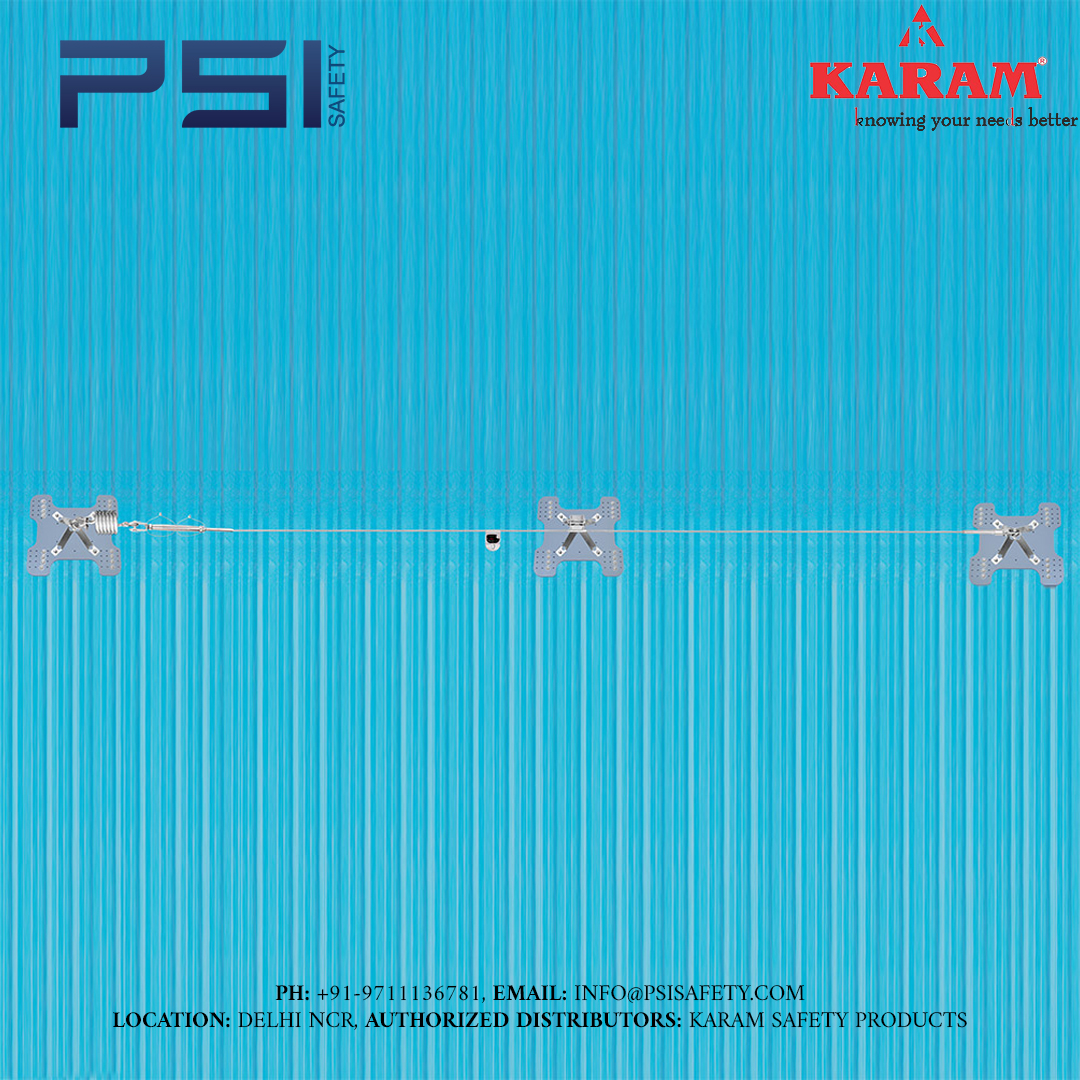

Horizon PN4000 (roof-mounted) offers permanent anchorage for up to 4 users moving along an elevated horizontal track on the roof.

Warranty covers manufacturing defects for 1 year from the invoice date.

Ideal for use

Industrial Sites
No Climbing Structures Available

Components

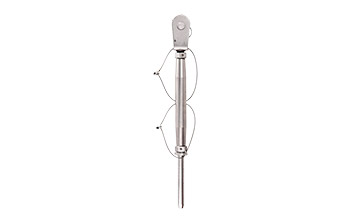

Swaged Tensioner

PN4000(03)

  • Regulates tensioning of the cable
  • Material: Stainless steel 316
  • Feature: Swage termination

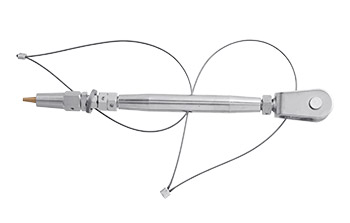

Swageless tensioner

PN 4000(03)SL

  • Regulates tensioning of the cable
  • Material: Stainless steel 316
  • Feature: Swageless termination

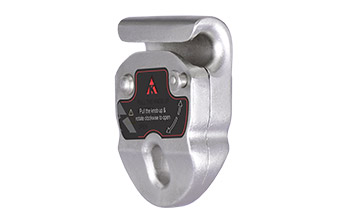

Carriage Body

PN4000(08)

  • Material: Stainless steel 316
  • Feature: Friction free movement

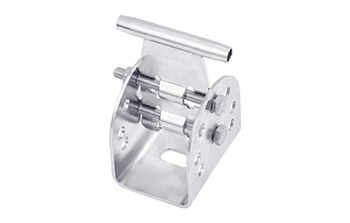

Intermediate

PN4000(10)

  • Material: Stainless steel 316
  • Recommended installation-every 15.0m

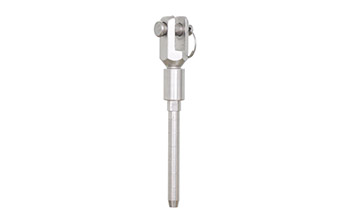

Swaged Cable Extremity

PN4000(15)

  • Allows crimping of the cable wire at the desired length, and eliminates danger of any loose wire
  • Material: Stainless steel 31
  • Feature: Swaged termination

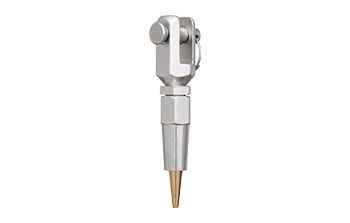

Cable Extremity (Swageless)

PN7000(03)

Optional



Shock Absorber

PN4000MU(02)

  • Material: Stainless steel

Wire Rope (Cable Wire)

PN9XXXS

  • Material: Stainless steel 316
  • Diameter: 8mm
  • Construction: 7×19

Inspection Plate

PN9000(12)

  • For identification, traceability and maintenance of implementation records

Optional: Intermediate

PN4000(10)N

  • Material: Stainless steel 316
  • Recommended Installation-every 15.0m
