Description

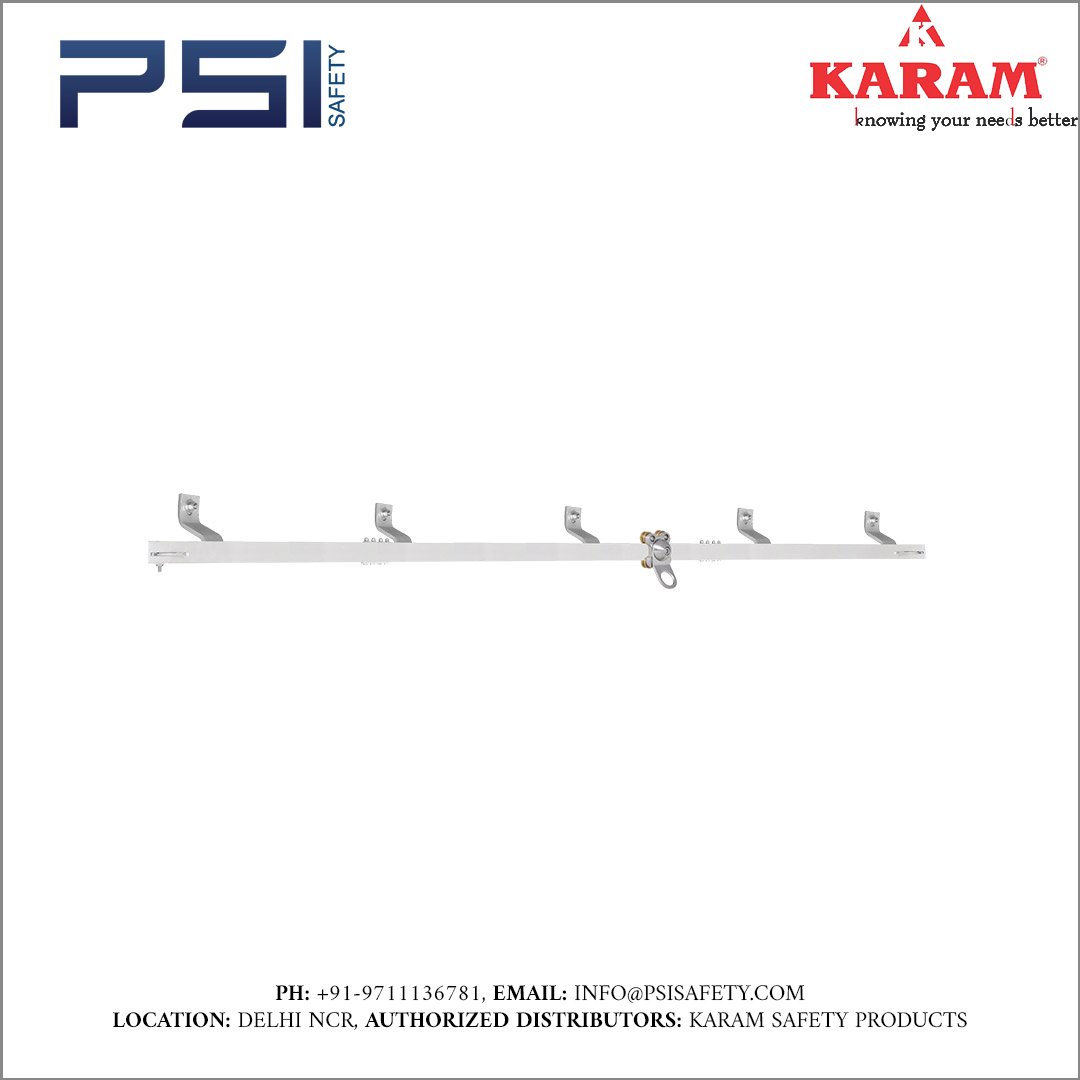

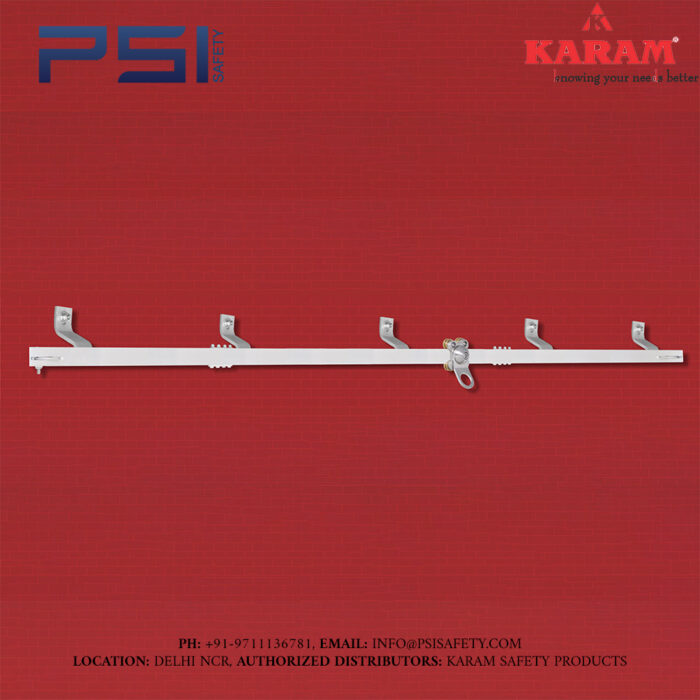

This anchorage rail system is designed to provide safe anchorage for horizontal movement while working at height.
Warranty: 1 year from the date of invoice against any manufacturing defects.
Ideal for use
Components

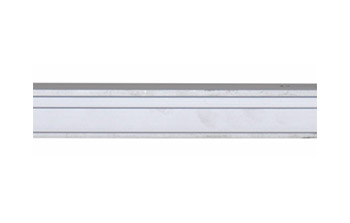

Aluminium Rail Intermediate
PN5000(01)
- Material: Extruded aluminium alloy
- Length: 3.0m

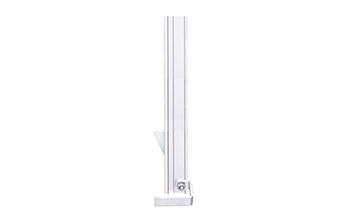

Aluminium Rail Extremity
PN5000(02)
- Material: Extruded aluminium alloy
- Length: 3.0m

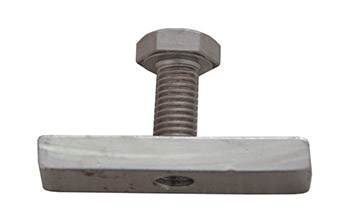

Mounting Nut
PN5000(03)
- Material: Stainless steel 316 to connect the rail to the mounting
- Bracket PN5000(04) or PN5000(05)

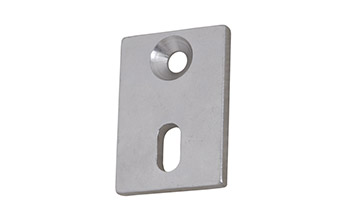

Wall Mounting Bracket Flush Type
PN5000(04)
- Material: Stainless steel 316 (for flush type wall mounting)
Wall Mounting Bracket with Recess
PN5000(05)
- Material: Stainless steel 316 (for wall mounting with recess)

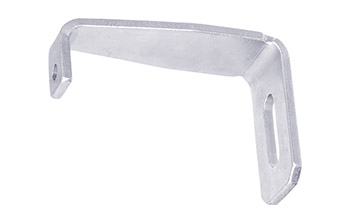

Ceiling Mounting Bracket
PN5000(06)
- Material: Stainless steel 316 (for ceiling mounting)

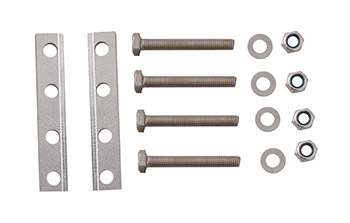

Junction
PN5000(08)
- Used to Connect Two Rails Together
- Material: Clamp-aluminium alloy; fastener- SS316

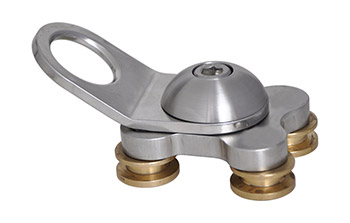

Trolley for Wall
PN5000(12)
- Material: Stainless steel 316 trolley with brass wheels which provides frictionless movement

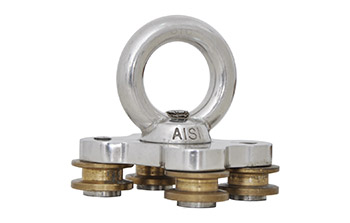

Trolley for Ceiling/Floor
PN5000(13)
- Material: Stainless steel 316 trolley with brass wheels which provides frictionless movement

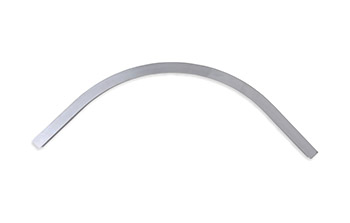

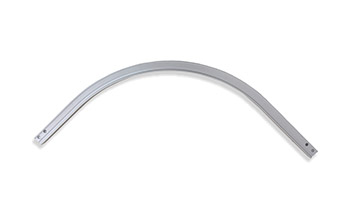

Curved Aluminium Rail Material: Extruded aluminium alloy
PN 5000(09A)
- Outer wall mounted
Curved Aluminium Rail Material: Extruded aluminium alloy
PN5000(09B)
- Inner wall mounted
Curved Aluminium Rail Material: Extruded aluminium alloy
PN5000(10)
- Ceiling/Floors
Inspection Plate
PN6000(03)
- For identification traceability and maintenance of implementation records
