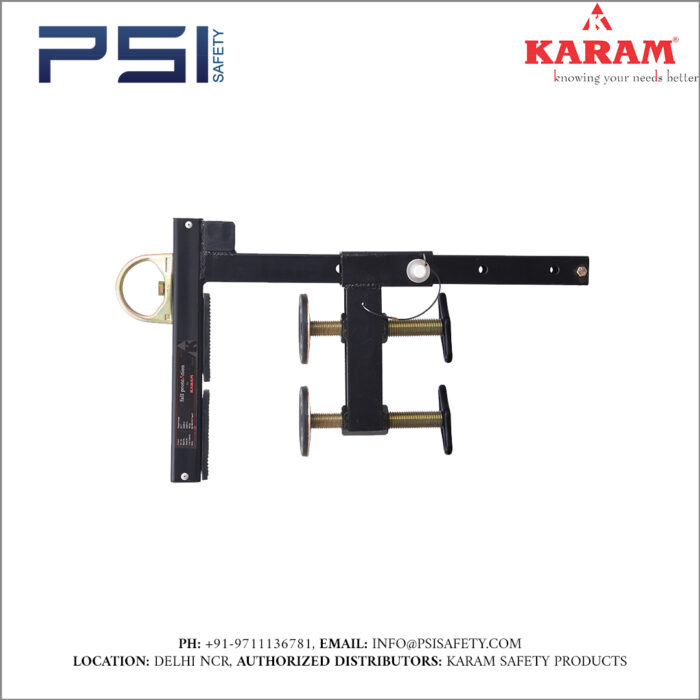

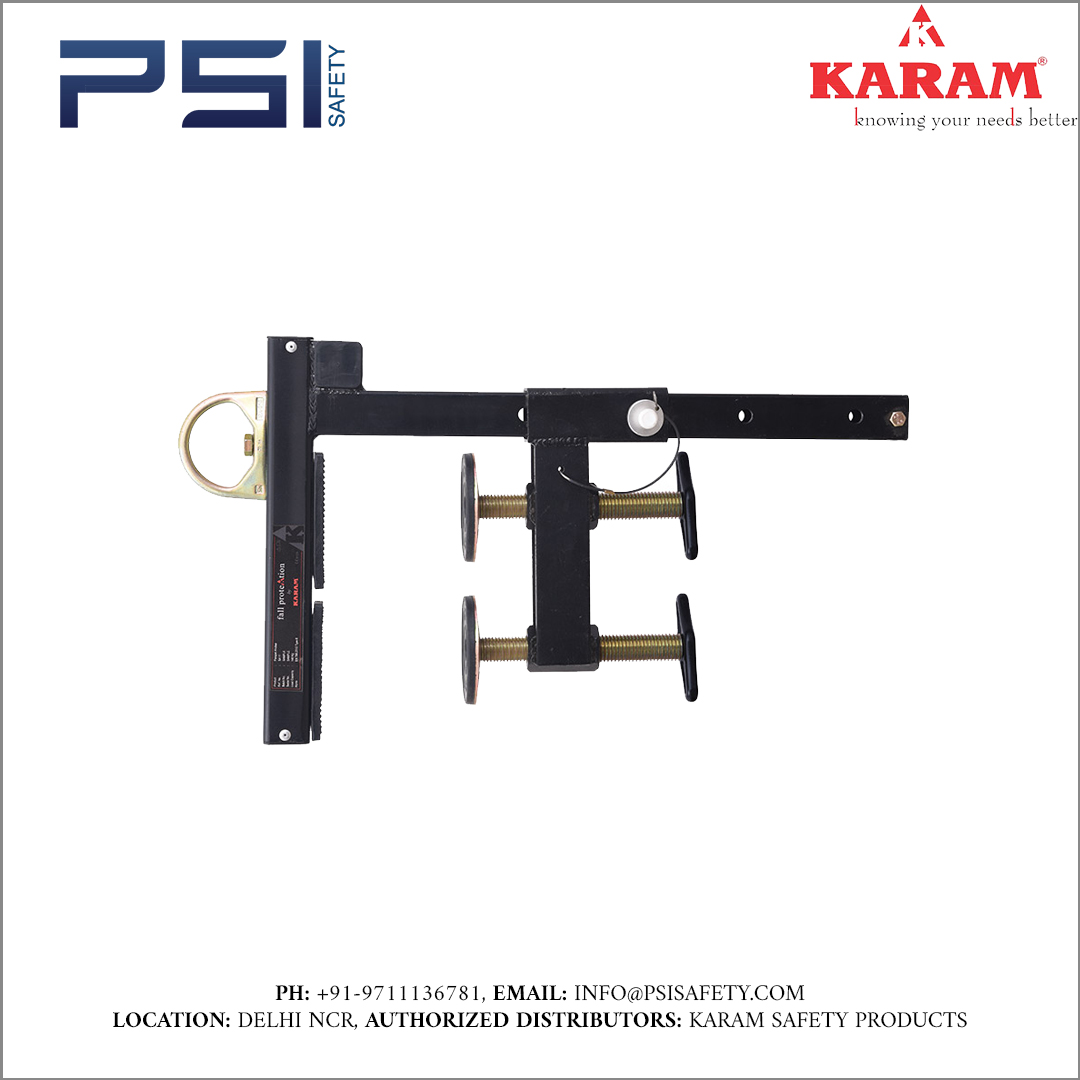

Karam Parapet Anchor Model – SA11 Type B Anchor

Product Specifications

Material	Alloy steel with ED coated Black
Minimum Breaking Strength	23kN
Flange Width	60mm to 360mm
Net Weight	9.0kg ± 0.1kg

Certification

Certified to EN 795:2012 Type B, IS 3521(Part 7):2021 and Conforms to ANSI Z359.18-2017 type A

Description

B-type anchor devices feature one or more fixed anchor points and do not require a fixing element to attach to the structure. They are designed for easy transport and can be quickly installed or dismantled with minimal effort. Suitable for use on parapets, facades, and various structures.

Warranty: Covers manufacturing defects for one year from the invoice date.

Benefits

This provides a secure anchorage point on parapets and facades, suitable for use on various structures. The soft part on the inner side of the adjustable flanges also prevents damage to the parapet.
