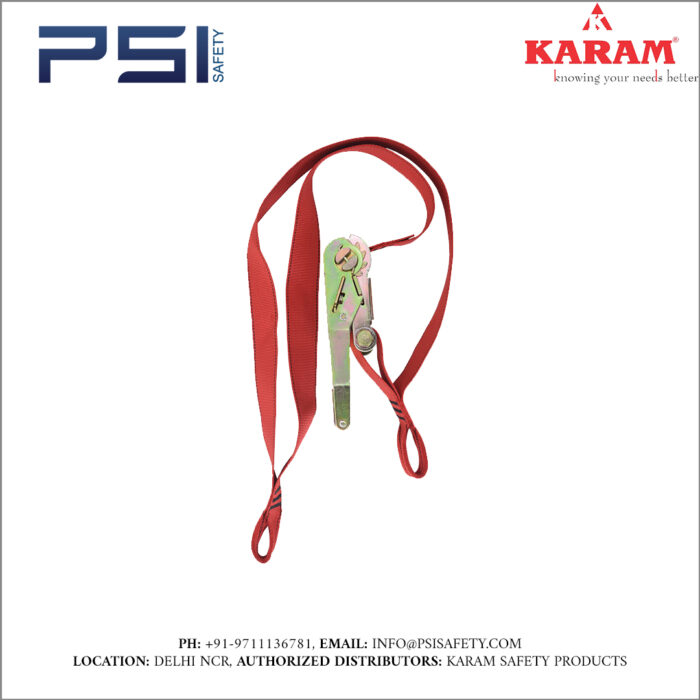

Karam Ratchet Hauling System Model – PN411

Product Specifications

Material	Alloy Steel
Weight	1.12kg
Minimum Breaking Strength	12kN for 3 minutes
Finish	Galvanized steel in yellow passivation

Certification

Conforms to EN 1496:2017 Class A

Description

A ratchet hauling system combines a ratchet mechanism with a load-pulling system, offering controlled and incremental movement for lifting or pulling tasks. This design ensures precise load positioning and prevents reverse motion, providing a versatile solution for applications that require stability and accuracy.

Warranty: Covers manufacturing defects for 1 year from the invoice date.

Benefits

Connect one loop of the ratchet hauling system to the structure using a connector or karabiner at the appropriate height.
Connect the other loop of the ratchet hauling system to the victim using an automatic descender and a connector.
Utilize the hauling features of the device to rescue the victim safely.
Once the victim is fully on the ratchet hauling system, release the primary lanyard.
