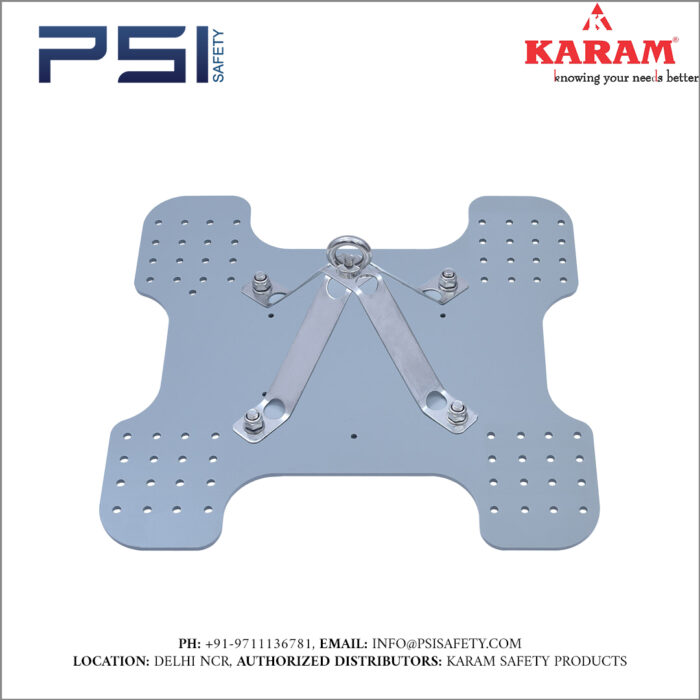

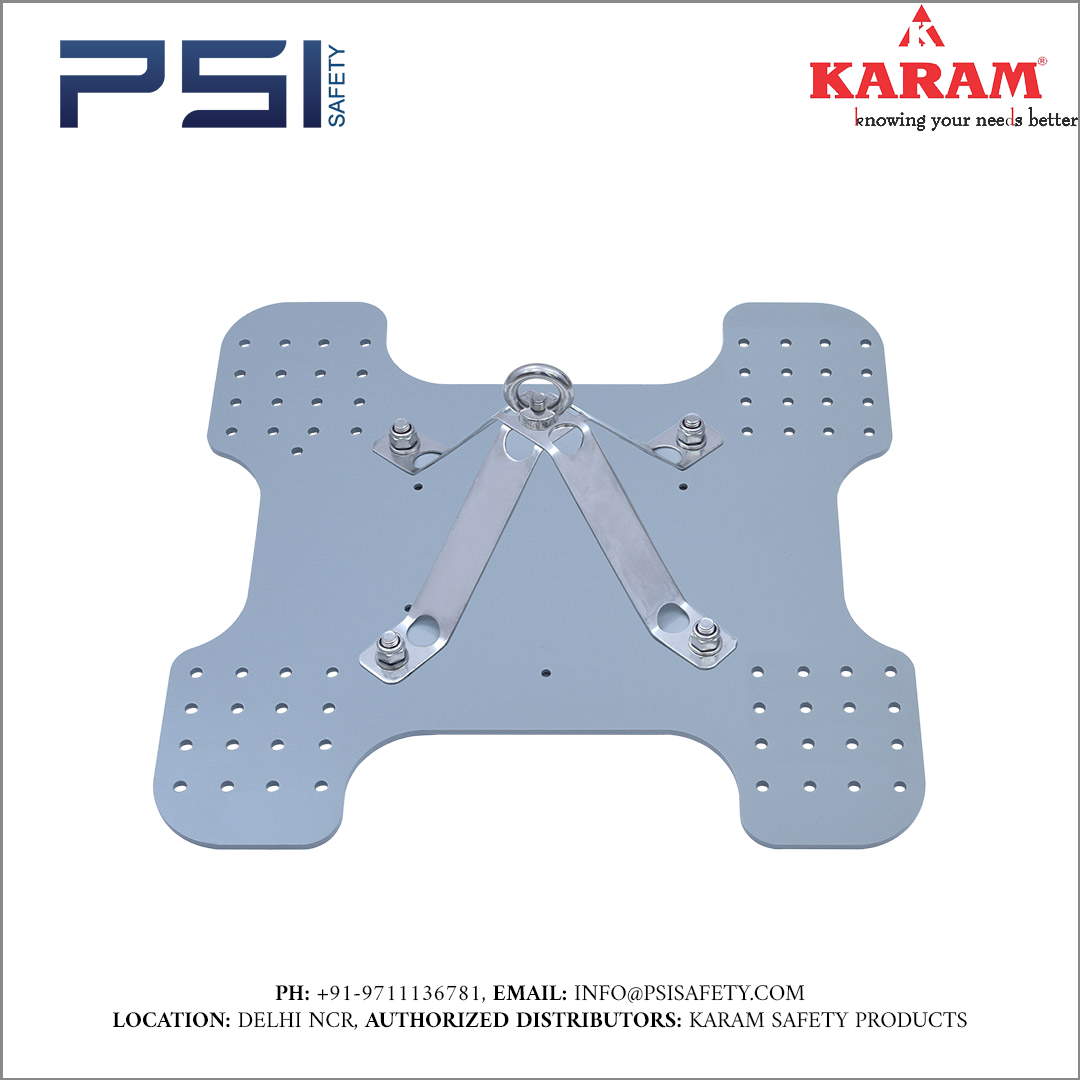

Karam Roof Top Anchor Post Extremity Model

Karam Roof Top Anchor Post Extremity Model – SA07G

Material	SS grade 316
Installed on	Galvolume/trapezoidal roof top at both ends of a horizontal lifeline system installed over the roof
Finish	Cross arms electro polished bottom plate ED coated (grey colour)
Breaking Strength	15kN
Weight	3.4kg
Min and Max Adjustable Opening	The width of the base has an adjustable opening to adopt to the type of roof. The base plate has series of holes to fit different types of trapezoidal roof sheets.

Certification

EN 795:2012 Type A TS16415:2013 (for upto 2 users), IS 3521(Part 7):2021

Description

Galvolume/trapezoidal roof top at both ends of a horizontal lifeline system installed over the roof.

Warranty: 1 year from the date of invoice against any manufacturing defects.

Designed for fixing on trapezoidal rooftops.
Attaches to ends of a horizontal lifeline on the roof.
Base plate features multiple holes for fitting onto galvalume/trapezoidal sheets with varying pitches/ribs.
Anchorage eye on top offers universal connection and serves as an anchorage point.
