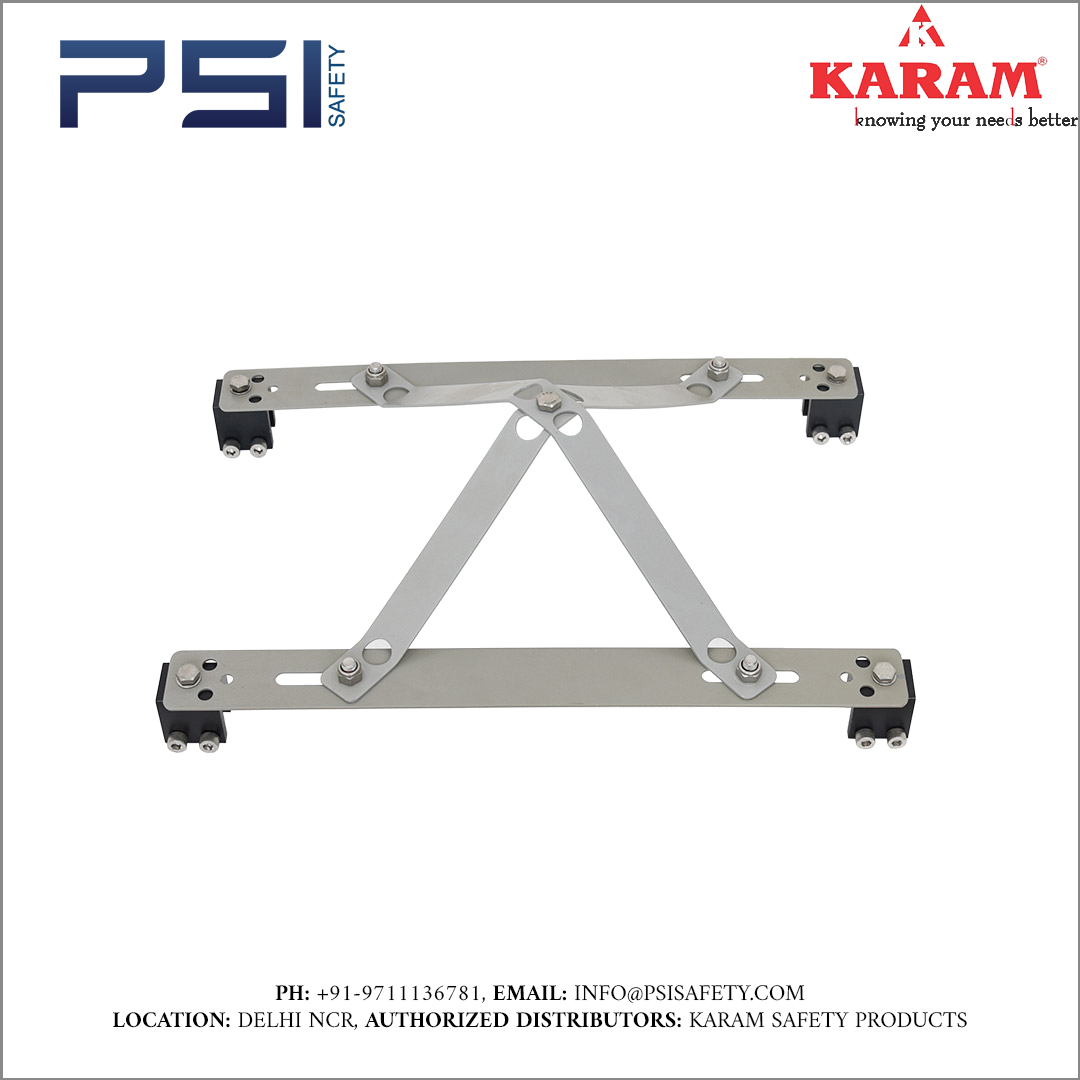

Karam Roof Top Anchor Post Intermediate Model – SA07D

Material	SS grade 316
Installed on	Standard seam roof top at every intermediate of a horizontal lifeline installed over the roof
Finish	Electro polished
Weight	4.0kg
Min Adjustable Opening	225.0mm
Max Adjustable Opening	400.0mm

Certification

IS 3521(Part 7):2021

Description

Horizontal lifeline system installed over a standing seam roof at every intermediate point.

Warranty covers manufacturing defects for 1 year from the invoice date.

Designed for installation on standing seam roofs.
Attaches to ends of a horizontal lifeline on the roof.
Base plate slots enable adjustable installation on roofs with varying seam distances.
Suitable for seam distances ranging from 535mm to 605mm.
