Description
Benefits

Z-axis

Y-axis

X-axis
Ideal for use

Steel-Structures

Rooftops

Wall

Ceiling
Material | Alloy steel |
Minimum Breaking Strength | 23kN |
Finish | Silver/golden yellow galvanized |
Net Weight | 435.0gm |
Conforms to EN 795:2012 Type A, TS 16415:2013 Type A (for up to 4 users) and Certified to AS/NZS 5532:2013, IS 3521(Part 7):2021
This anchor device includes one or more stationary anchor points that necessitate a structural anchor or fixing element to attach to the structure. Typically small in size, it may or may not be removable from the supporting structure depending on how it’s fixed, such as with rivets, studs, screws, welds, or resin bonding.
Warranty: Covers manufacturing defects for 1 year from the invoice date.

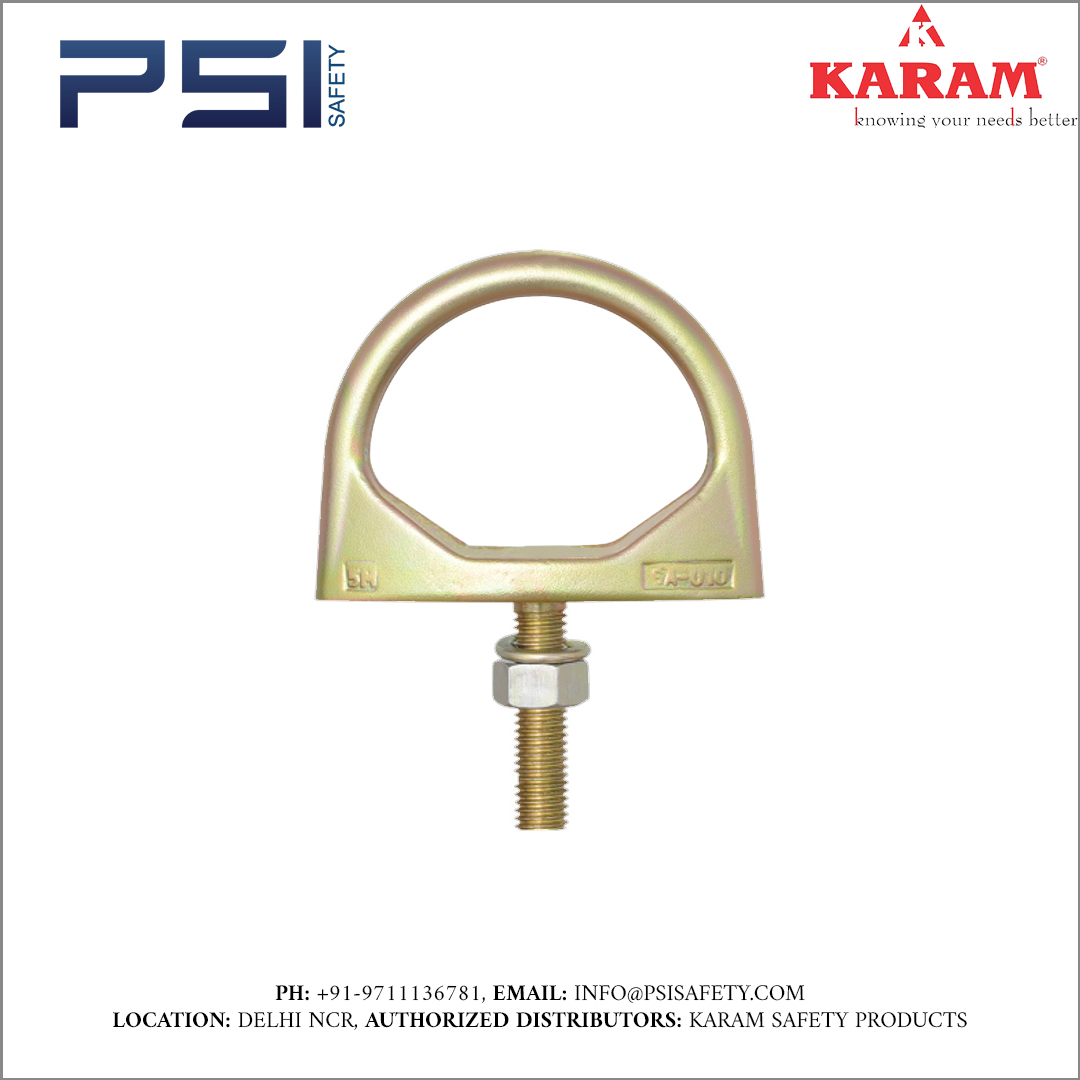

This forged steel anchorage point can be bolted onto any structure without requiring additional fasteners. Special lengths of studs can also be provided upon request.
Z-axis
Y-axis
X-axis
Steel-Structures
Rooftops
Wall
Ceiling
