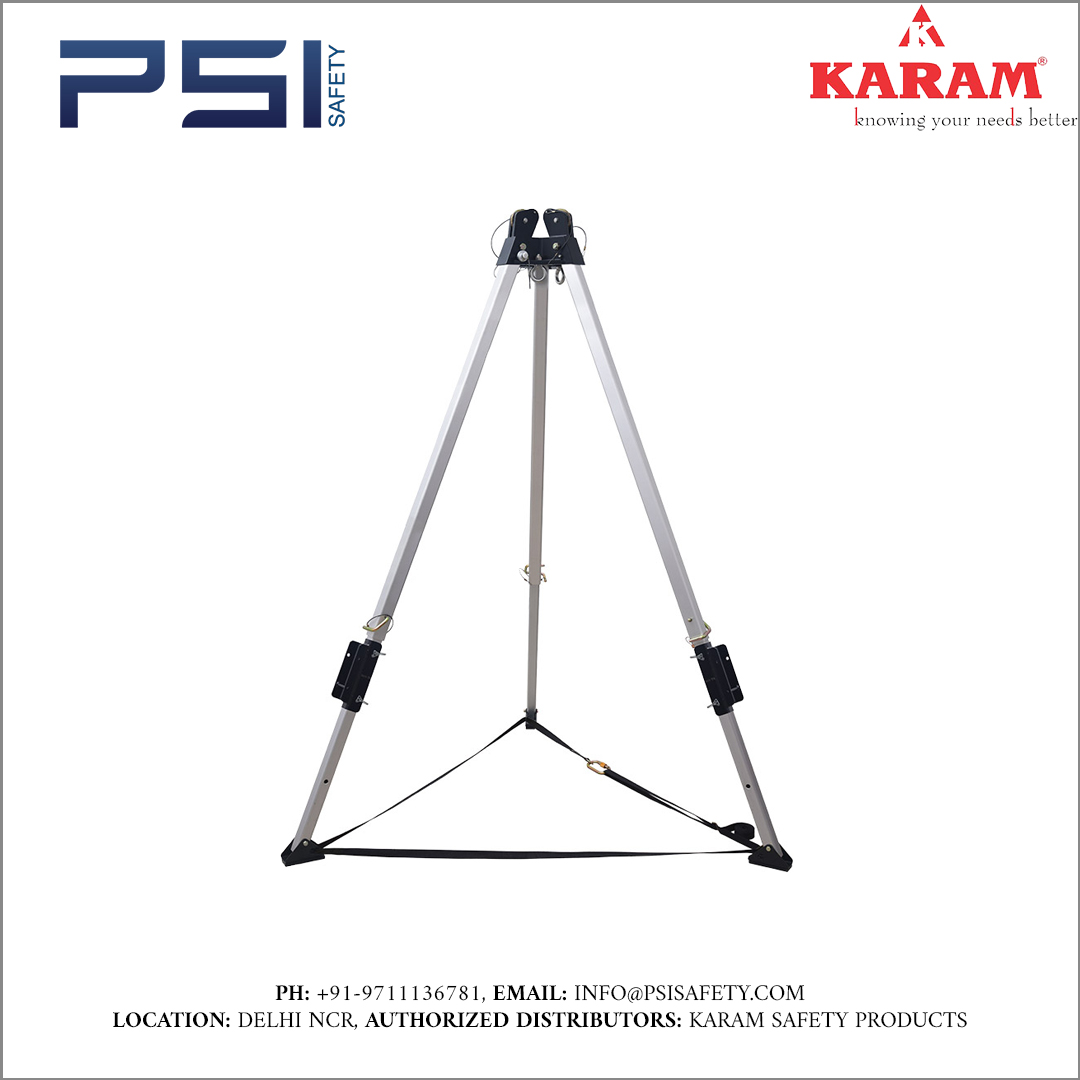

Karam Tripod Model – PN800(DP)

Benefits

Equipped with double integral head-mounted pulleys permanently incorporated in the cast aluminum head, allowing independent passage of cable from a winch and a retrieval block.
Includes two auxiliary eye bolts as attachment points.
Cast head and legs are made from aluminum alloy.
Features steel support shoes with rubber soles to increase friction and stability.
Anchor point strength exceeds 23kN.
Comes with pre-installed universal mounting attachments for easy mounting of winches and retrieval blocks.
Includes a sturdy bag for packing.

Certification

PN800(DP)(7ft), PN800(DPW)(7ft), PN800(DPW)(10ft)- EN 795:2012 Type B, Atex 2014/34/EU, IS 3521(Part 7):2021; PN800(DP)(10ft)- EN 795:2012 Type B, Atex 2014/34/EU, AS/NZS 5532:2013, IS 3521(Part 7):2021

Description

The tripod is designed for easy access into confined spaces like manholes and tanks. It offers controlled ascent and descent and fall protection, especially for deeper spaces. KARAM provides equipment to facilitate overhead access and retrieval of personnel and materials from such confined spaces.

The tripod is compatible with winches PN801(DP), PN801(40)(DP), PN817(DP), PN818(DP), PN818(SR)(DP), PN818(C)(DP) when used with PN800(44) winch bracket, and retrieval blocks PCGS20R(N), PCGS25R, and PCGS30R when used with PN800(45) retrieval bracket.

A 1-year warranty from the invoice date covers any manufacturing defects.
